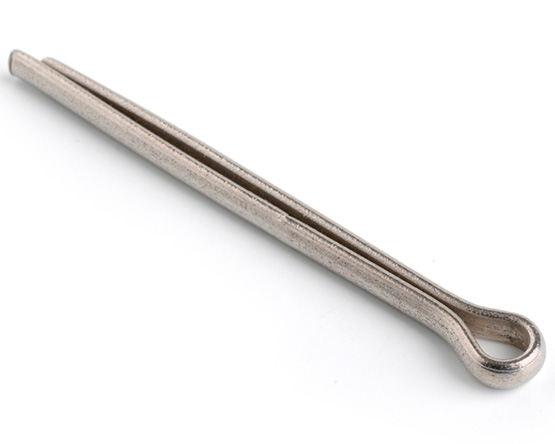

1.2 X 18 विभाजित कॉटर पिन DIN 94 AISI 304
£2.71 (exc VAT) per 100
पार्ट नं. A9401218
£2.71 (exc VAT) per 100
| मात्रा और कीमत | मूल्य प्रति 100 |
|---|---|
| 1000 + | £2.71 |
| 2000 + | £2.57 |
| 4000 + | £2.45 |
| 10000 + | £2.32 |
| 20000 + | £2.18 |
आगे की जानकारी
| Diameter (d1 nom) | d1 | c | b | a |
|---|---|---|---|---|
| 1.0 | 0.90-0.80 | 1.80-1.60 | 3.0 | 1.60-0.80 |
| 1.2 | 1.00-0.90 | 2.00-1.70 | 3.0 | 2.50-1.25 |
| 1.6 | 1.40-1.30 | 2.80-2.40 | 3.2 | 2.50-1.25 |
| 2.0 | 1.80-1.70 | 3.60-3.20 | 4.0 | 2.50-1.25 |
| 2.5 | 2.30-2.10 | 4.60-4.20 | 5.0 | 2.50-1.25 |
| 3.2 | 2.90-2.70 | 5.80-5.10 | 6.4 | 3.20-1.60 |
| 4.0 | 3.70-3.50 | 7.40-6.50 | 8.0 | 4.00-2.00 |
| 5.0 | 4.60-4.40 | 9.20-8.00 | 10.0 | 4.00-2.00 |
| 6.3 | 5.90-5.70 | 11.80-10.30 | 12.6 | 4.00-2.00 |
| 8.0 | 7.50-7.30 | 15.00-13.10 | 16.0 | 4.00-2.00 |
| 10 | 9.50-9.30 | 19.00-16.60 | 20.0 | 6.30-3.15 |
| 13 | 12.40-12.10 | 24.30-21.70 | 26.0 | 6.30-3.15 |
